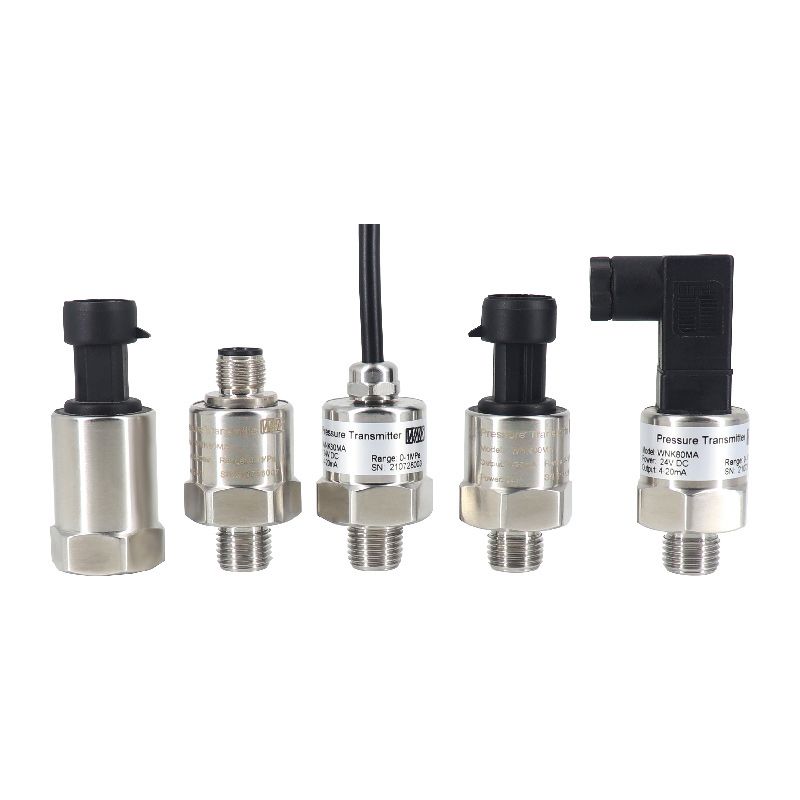

WNK80MA WNK81MA pressure sensor
Product Details
The WNK80MA uses an ASIC signal conditioning chip and a dry ceramic capacitive pressure sensor with high temperature stability and direct contact with most media.
WNK81MA is a pressure sensor with diffusion silicon oil filling. It is resistant to corrosion, abrasion, shock and vibration. The most outstanding feature is the positive and negative gauge pressure function.
Product Model：WNK80MA or WNK81MA
Measuring range: 0-300Kpa...6MPa(WNK80MA), -100KPa-5Kpa...60MPa(WNK81MA)
Accuracy: 0.5%, 1%
Output: 4-20mA, 0.5-4.5V, 1-5V, 0-10V, I2C
Power supply: 8-30V, 5V, 9-30V, 12-30V, 3.3-5V
Electrical connection: Cable socket, Mini DIN43650, GX12-3, Packard, M12 4Pin
Process connection: G1/4, 1/4NPT, M20x1.5, M10x1, G1/8, 1/8NPT, 7/16-20UNF female, others
