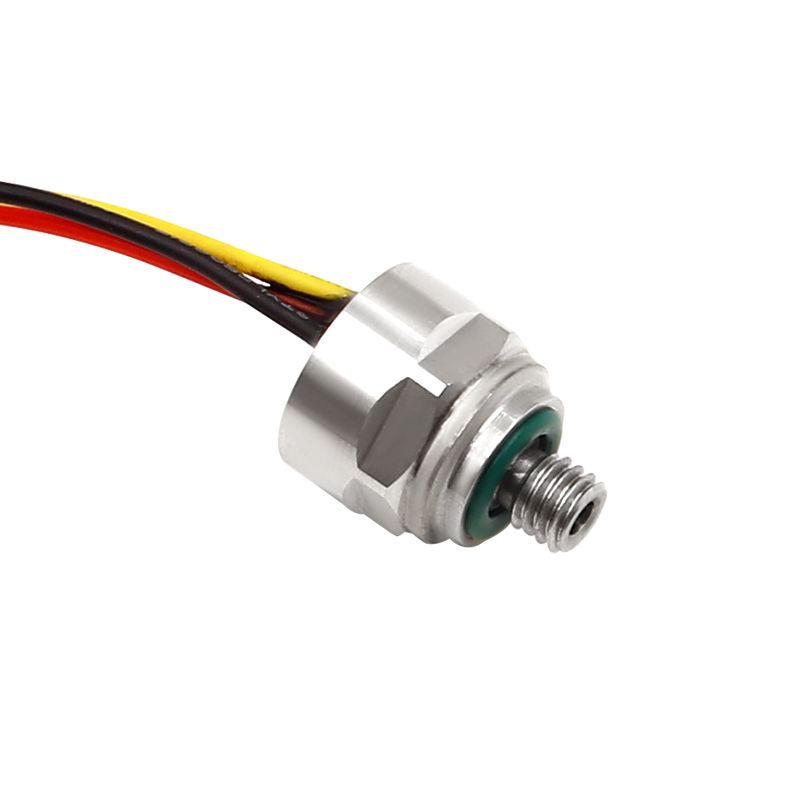

WNK125SP Miniature Pressure Sensor
Product Details
WNK125SP is a mini diffused silicon pressure sensor. The sensor uses an O-ring to maintain good sealing. Since the sensor size is very small, it is more convenient for engineers to save more available space when developing products. The pressure sensor has high temperature stability and measurement accuracy, and is mainly used in coffee machines, water dispensers, air conditioners, smart water meters and other fields.
Model: WNK125SP
Power supply: 5V DC、3.3 VDC
Pressure range: 0~16Bar, (customized)
Output: 0.5~4.5V , I2C, (10%-90%Vcc)
Process connection: M6*1 thread, (other customization)
Electrical connection: 50cm cable
Operating temperature: -20℃~80℃
Storage temperature: -30℃~90℃
Safety pressure: 1.5~2 times of sensor range
Explosion pressure: 100Bar G
Accuracy: ±1%F.S (linearity, hysteresis, repeatability, calibration) Static error band @25℃, 5VDC
Total error band: ±3% (-30℃~75℃)
Pressure medium: engine oil, POE oil, refrigerant, gas, water or liquid
Material: 304 stainless steel for housing; 316L stainless steel for sensor contact
Installation torque: 8~15N·m
Protection level: IP68, glue filling on top
